Deye MQTT HA Plugin

Introduction

This plugin connects your "Deye Solar Inverter MQTT Bridge" directly to Home Assistant, making it easy to automatically discover and use all the values published by your inverter.

With this integration, you can visualize your solar energy data right inside Home Assistant. Here’s an example of an energy usage diagram, powered by data from your Deye inverter:

Screenshot of energy usage diagram provided by Home Assistant filled with data from a Deye solar inverter

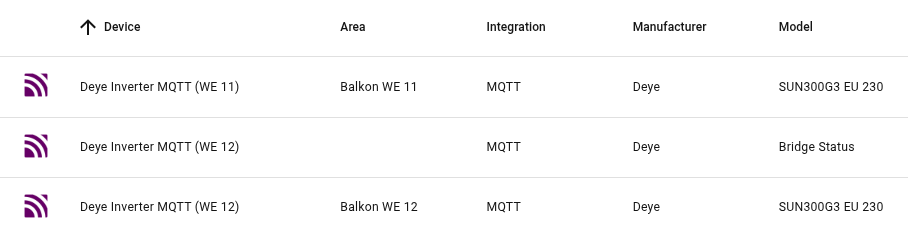

The plugin also supports setups with multiple inverters. Each inverter appears as a separate device in Home Assistant, with its own sensors and connection status:

Screenshot of the Home Assistant device list showing two Deye inverters as separate devices

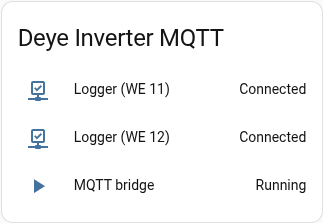

A single status card gives you a live overview of all connected loggers and the MQTT bridge:

Screenshot of the Home Assistant status card showing both loggers connected and the bridge running

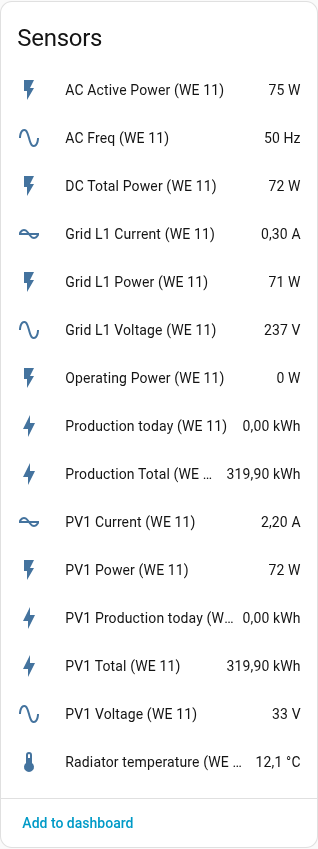

Each inverter exposes the same set of metrics, labeled with its identifier:

Screenshot of the Home Assistant sensor list for one inverter showing all available metrics

You can also read and update the active power regulation feature (if enabled).

Please note: reading and updating the "time of use" (ToU) configuration isn’t available yet.

Requirements

Before you get started, please make sure the following conditions are met:

  1. Your inverter is supported by the Deye MQTT bridge. You can check compatibility in the supported inverters and metrics list.
  2. Your inverter is switched on and can be reached by the Deye MQTT bridge.
  3. The Deye solar inverter MQTT bridge is installed in at least version 2026.02.2.
  4. The Deye MQTT bridge is set up to read values from your inverter and successfully publish them to your MQTT broker.

Once these requirements are fulfilled, you’re ready to connect your solar system to Home Assistant and take full advantage of your energy data!

Installation

  1. Identify how many PV inputs your inverter has. PV inputs are the individual strings or chains of solar panels connected to your inverter, each providing its own set of measurements.

  2. Install and configure the Deye Solar Inverter MQTT Bridge.

  3. Add the following section to your config.env configuration file for the MQTT bridge to enable Home Assistant integration:

    # Home Assistant Integration
# ==========================

# NOTE: Do not use quotation marks around these values.

# Enable this plugin
PLUGINS_ENABLED=deye_plugin_ha_discovery

# MQTT prefix for all topics published to Home Assistant
DEYE_HA_PLUGIN_HA_MQTT_PREFIX=homeassistant

# Inverter manufacturer
DEYE_HA_PLUGIN_INVERTER_MANUFACTURER=<your manufacturer>

# Inverter model
DEYE_HA_PLUGIN_INVERTER_MODEL=<your inverter>

# Topics not published to HA
# Use : as separator, supports Unix shell-style wildcards *, ?, [seq] and
# [!seq] as implemented with Python fnmatch
DEYE_HA_PLUGIN_IGNORE_TOPIC_PATTERNS=uptime:ac/relay_status:*/pv[234]/*

# If the sensor value isn't updated for DEYE_HA_PLUGIN_EXPIRE_AFTER seconds, it'll expire / be
# marked as "unavailable" in Home Assistant.
# It must be greater than DEYE_DATA_READ_INTERVAL or DEYE_PUBLISH_ON_CHANGE_MAX_INTERVAL (if used)
# If the value is not defined, sensor values never expire
DEYE_HA_PLUGIN_EXPIRE_AFTER=600

# Use MQTT topic instead of sensor name in unique_id
# CAUTION:
#   Activate this option for new installations only.
#   It will break existing integration as it changes the unique_id of all sensors.
#   New sensors will be created with the same name as the existing sensors. You can
#   merge these sensors manually with db_maint.py.
DEYE_HA_PLUGIN_USE_TOPIC_IN_UNIQUE_ID=true

  4. Replace and with the actual values. If needed, also adjust DEYE_HA_PLUGIN_HA_MQTT_PREFIX:

    DEYE_HA_PLUGIN_INVERTER_MANUFACTURER=Deye
DEYE_HA_PLUGIN_INVERTER_MODEL=SUN-3.6K-SG01HP3

  5. For multi-inverter setups, add the following to config.env:

    # Sample multi-inverter configuration with two loggers
DEYE_LOGGER_COUNT=2

DEYE_LOGGER_1_IP_ADDRESS=192.168.1.100
DEYE_LOGGER_1_SERIAL_NUMBER=1234567801
DEYE_LOGGER_1_DESC=balcony left
# DEYE_LOGGER_1_PROTOCOL=at

DEYE_LOGGER_2_IP_ADDRESS=192.168.1.101
DEYE_LOGGER_2_SERIAL_NUMBER=1234567802
DEYE_LOGGER_2_DESC=balcony right
# DEYE_LOGGER_2_PROTOCOL=at

# enables multi-inverter data aggregation and publishing
DEYE_FEATURE_MULTI_INVERTER_DATA_AGGREGATOR=true

  6. Adjust DEYE_HA_PLUGIN_IGNORE_TOPIC_PATTERNS according to your number of PV inputs. By default, the plugin ignores all PV inputs except the first one to keep things manageable in Home Assistant. If you want to include all PV inputs, simply remove :*/pv[234]/* from the value.

  7. Install the plugin from the plugins directory. For details, see "How to start the docker container with custom plugins".
    Remember to recreate the container after updating config.env—just restarting won’t apply your changes.

  8. In Home Assistant, install the Utility Meter integration.

  9. Set up a Utility Meter helper to reset your daily production counter at midnight.
    You can do this in your configuration.yaml:

    # Example configuration.yaml entry
utility_meter:
  energy:
    name: "Production total (daily reset)"
    source: sensor.deye_inverter_mqtt_production_total
    cycle: daily

    Or use the graphical interface:

    Screenshot of Utility Meter setup part 1

    Screenshot of Utility Meter setup part 2

Troubleshooting

  1. Make sure your deye-mqtt container is running the required minimum version.

  2. Check if the plugin loaded successfully:

    docker logs deye-mqtt

    After starting the container, you should see a message like:

    DeyePluginLoader - INFO - Loading plugin: 'deye_plugin_ha_discovery'

    If you don’t see this, double-check your plugin installation.

  3. Look for errors in the deye-mqtt container logs.

    If needed, increase the logging detail in config.env by setting LOG_LEVEL=DEBUG and restart the container.

  4. To inspect what’s being published to your MQTT broker, try a graphical tool like MQTT Explorer.

Resources

Changelog

2026-04-08

  • Add multi-inverter support

2026-03-23

  • Add HA discovery for new sg01hp3/sg04lp3 topics

2025-04-17

  • Refuse to start if multi-inverter setup is active (not yet supported)

2025-02-27

  • Add support for the first binary_sensor - on/off-grid status (by @daniel-deptula)
  • Add support for the "expire_after" parameter for all sensors (by @daniel-deptula)

2024-12-20

2024-11-20

  • Add support for active power regulation
  • Internal code changes
  • Use the new public API to create MQTT topic (requires Deye solar inverter MQTT bridge at least version 2024.11.1)

2024-10-22

  • Add device classes for total_energy_bought and daily_energy_sold

2024-10-03

  • Fix the wrong unit for uptime sensor

2024-09-20

  • All energy topics use state class "total_increasing" now
  • Add more MQTT topics

2024-08-30

  • first release

Known Bugs/Issues

Check out the project’s issue tracker

License

This project is licensed under the Apache 2.0 license.
